Introduction
- Mounts solid state contactors, motor reversing solid state relays, 3-phase SSR, and other 75 x 105mm or similarly packaged power modules

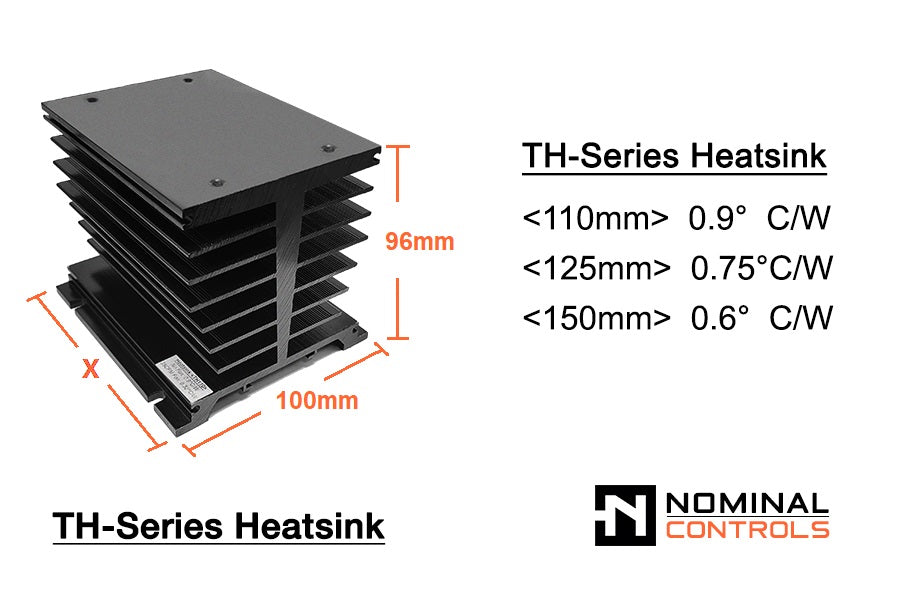

- Available with 0.9°C/W, 0.75°C/W, or 0.6 °C/W thermal resistance
- Panel mounting or din-rail mounting
- 92mm fan compatible
Specifications
|
|
TH110 |
TH125 |
TH150 |
|
Thermal Resistance (natural convection) |
0.9°C/W |
0.75°C/W |
0.6°C/W |
|
Thermal Resistance (forced air, 35CFM) |
0.4°C/W |
0.35°C/W |
0.25°C/W |
|
Weight (typical) |
0.8 kg (1.76 lb) |
1 kg (2.2 lb) |
1.15 kg (2.53 lb) |
|

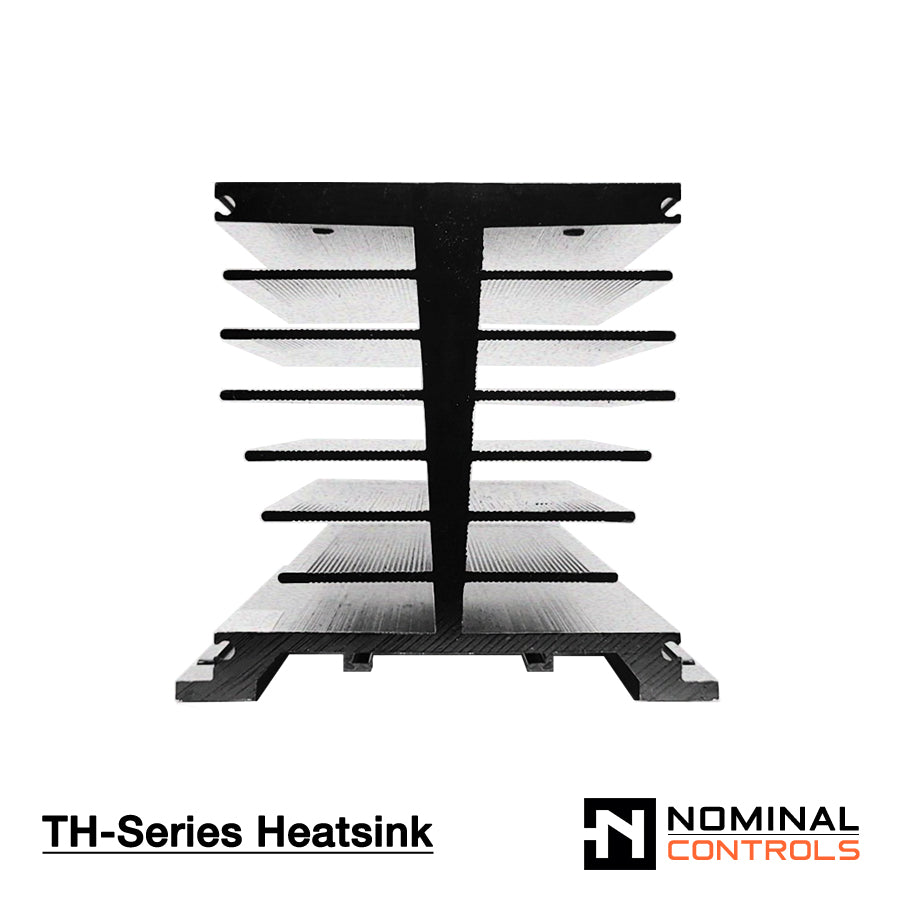

Extruded Metal |
Aluminum |
||
|

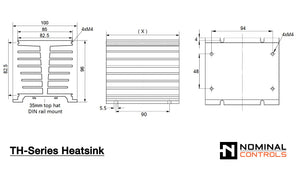

SSR/SSC Mounting Hole & Thread Size |
M4 x 12 |
||
|
Mounting Torque |
15-20 in-lb/1.7-2.2 nM |
||
|
Compatible Fan Size |
92mm
|
||
