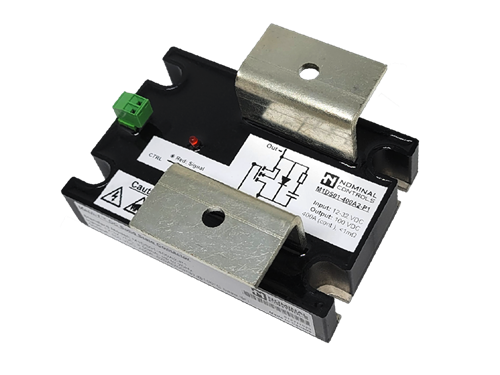

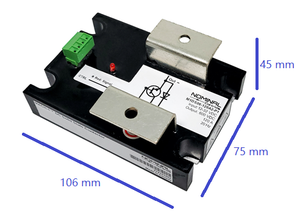

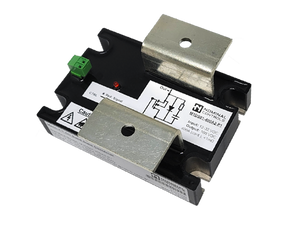

MACH-1™ solid-state high voltage DC contactors (up to 2kV, 450A, 3mΩ) are commonly used for EV automotive applications. Two semiconductor technologies are available for high-voltage DC switching:
- conventional silicon (Si), which offers lower cost but higher power loss,
-
advanced silicon carbide (SiC), which provides >50% lower power loss along with superior robustness and reliability. SiC technology may also be suitable for high-altitude environments where exposure to cosmic rays is significantly higher.
Features & Benefits
- Rated up to DC 2kV and 400A.
- No moving parts, arc-free & wear-free
- PLC/TTL/CMOS Input Options
- MTBF 1 million+ power cycles
- Made in Canada, semiconductors from USA/Taiwan
Specifications & Downloads
For product recommendations, please complete the technical survey here.
| Part# |
Rated Voltage | Available Current Ratings | Typical Voltage Drop / ON Resistance |
Notes |
| M1D□06 | 600 VDC | 120A or 200A | 1.2 V | Si |
| M1D□1K |
1,000 VDC |
150A, 250A, 450A | as low as 5mΩ | Si/SiC options |
| M1D□1K5 | 1,500 VDC | 50A, 100A, 350A | as low as 5mΩ | SiC options |
| M1D□2K | 2,000 VDC | 50A, 200A | n/A | SiC Only |
Sample Applications
- Scientific research
- Electric vehicle related application
- High-speed switching
