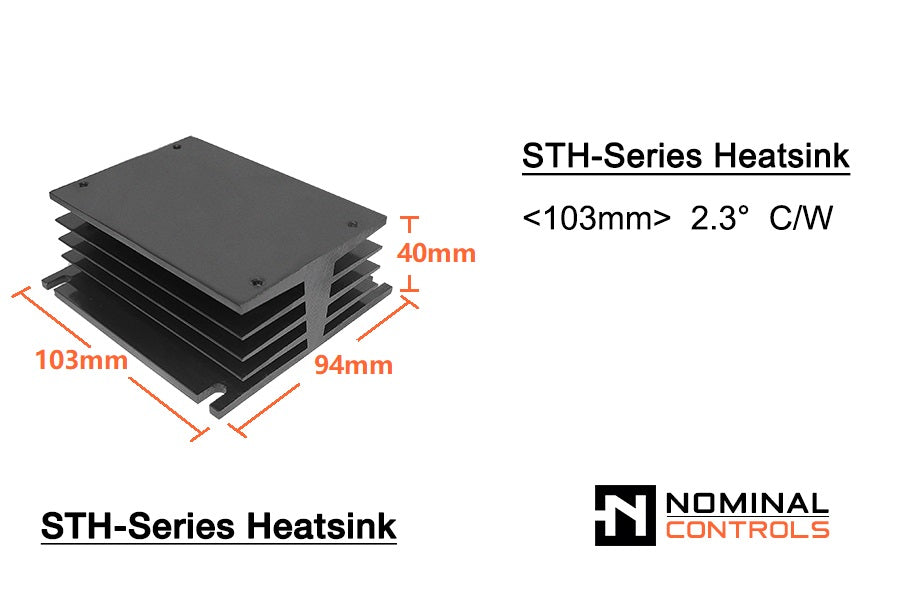

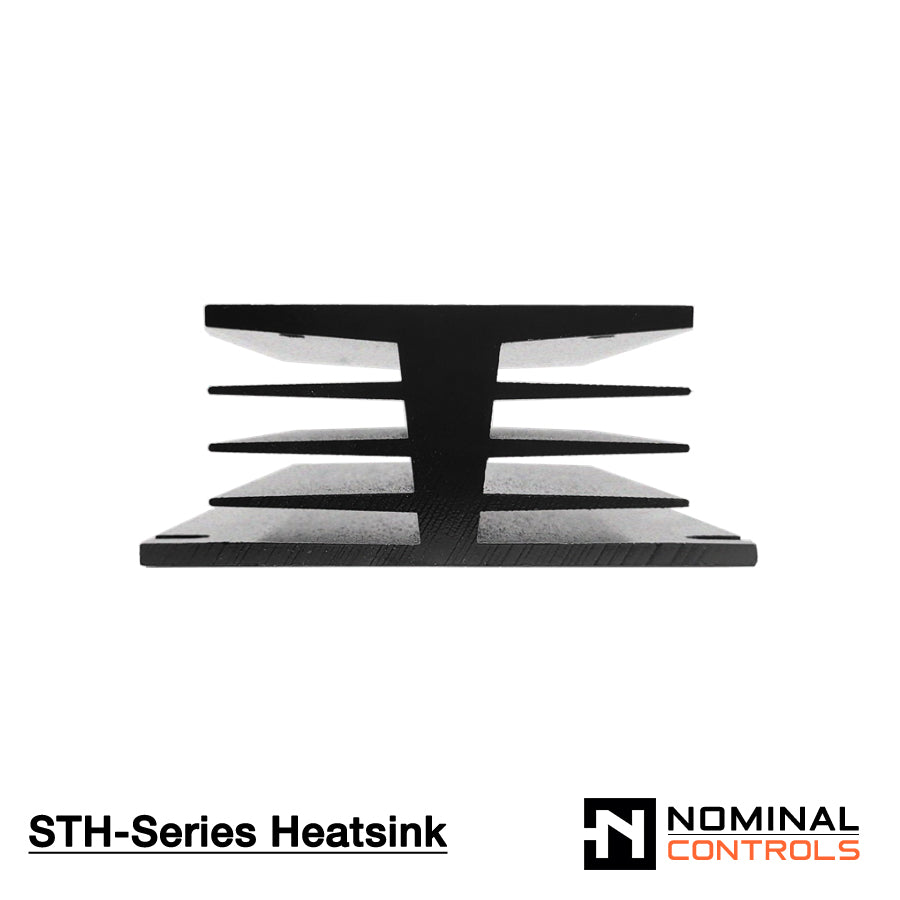

STH-Series Panel Mount Heatsinks
STH-Series Panel Mount Heatsinks
  • Load image into Gallery viewer, STH-Series Panel Mount Heatsinks
  • Load image into Gallery viewer, STH-Series Panel Mount Heatsinks

STH-Series Panel Mount Heatsinks

Regular price
$26.50
Sale price
$26.50
Regular price
Sold out
Unit price
per

Introduction
  • Mounts solid state contactors, motor reversing solid state relays, 3-phase SSR, and other 75 x 105mm or similarly packaged power modules
  • Small size
  • 2.3°C/W natural convection thermal resistance
  • Panel mounting
    Specifications



    STH103

    Thermal Resistance (natural convection)

    2.3°C/W

    Thermal Resistance (forced air, 35CFM)

    N/A

    Weight (typical)

    0.5 kg (1.1 lb)

    Extruded Metal

    Aluminum

    SSR/SSC Mounting Hole & Thread Size

    M4 x 12

    Mounting Torque

    15-20 in-lb/1.7-2.2 nM

    Compatible Fan Size

    92mm

    Contact us for a quote or other requirements:
